| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/10,000 s |
| Lens: | | | 2.8mm, 4mm, 6mm @ F2.0 angle of view: 100°(2.8mm), 90°(4mm), 53.9°(6mm) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG/H.264+ |
| H.264 code profile: | | | Main Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | -S: G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) *only for –S models |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm,Network disconnect , IP address conflict, Storage exception |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | | | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | | | 1x alarm I/O *only for –S models |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate: | | | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 25%, PoE (802.3af Class3) |
| Power Consumption: | | | Max. 5W |
| Impact Protection: | | | IK08 Protection Level |
| Weather Proof: | | | IP67 |
| IR Range: | | | 10 meters |
| Dimensions: | | | 99.3×96.7×52.8 mm |
| Weight: | | | 600 g (1.32 lbs) |
| NOTE：: | | | “-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |

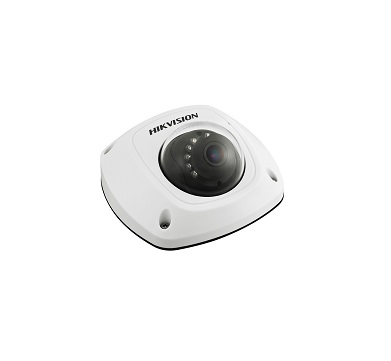

2MP/4MP WDR Mini Dome Network Camera
- 2MP/4MP real-time resolution
- 120dB WDR
- 3-axis adjustment
- On-board storage
- Up to 10m IR range
- DC12V & PoE
- IK8 protection, IP67
- Hik-connect cloud mobile surveillance
