| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.7″ Progressive Scan CMOS |
| Signal System: | | | PAL/NTSC |
| Min. Illumination: | | | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
| Shutter time: | | | 1s ~ 1/100,000s |
| Slow shutter: | | | Support |
| Lens Mount: | | | C/CS mount |
| Auto Iris: | | | DC drive |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Streams: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 4000 × 3000 |
| Frame Rate: | | | 50Hz: 15fps (4000 × 3000), 22fps (4096 × 2160), 25fps (3840 × 2160, 3072 × 1728,2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 15fps (4000 × 3000), 22fps (4096 × 2160), 24fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50Hz: 10fps(1280 × 720) |
| Image Enhancement: | | | BLC/3D DNR/ROI/Defog |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client softwareor web browser |
| Regional Cropping: | | | Support |
| BLC: | | | Yes, zone configurable |
| HLC: | | | Support |
| Smart Defog: | | | Support |
| ROI: | | | Support |
| 3D DNR: | | | Support |
| Picture Overlay: | | | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict,storage exception |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch 3.5 mm audio in( Mic in/Line in)/out interface, 1 build-in Microphone |
| Audio Input: | | | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone |
| Audio Output: | | | 1-ch 3.5mm audio interface |
| Communication Interface: | | | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm: | | | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Alarm Input: | | | 1 |
| Alarm Output: | | | 1 |
| Video Output: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| Audio | ||
| Environment Noise Filtering: | | | Support |
| Audio I/O: | | | Support dual audio track, stereo |
| Audio Sampling Rate: | | | 16kHz / 32kHz / 44.1kHz / 48kHz |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Region entrance, Region exiting,Unattended baggage, Object removal |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | | | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | | | Exit from a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | | | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,Defocus detection |
| Recognition: | | | Face detection recognition |
| Statistics: | | | Object Counting (Entrance and Exit object number is accounted and showed on screenin real time) |
| General | ||
| Operating Conditions: | | | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 6 W (Max. 9W with IR cut filter on) |
| Dimensions: | | | 69.8×58×145 mm (2.75” × 2.28” × 5.71”) |
| Weight: | | | 830 g (1.83 lbs) |

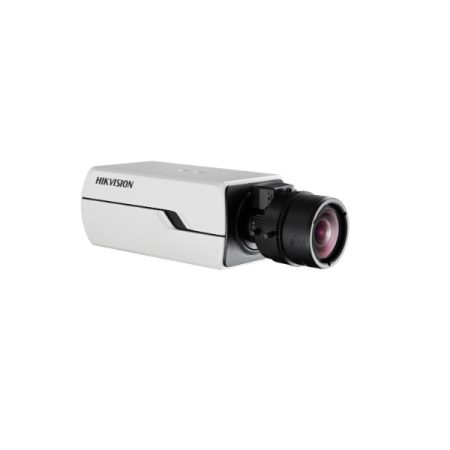

Camera Box 12MP Ultra-HD Full smart feature-set
- 1/1.7” Progressive Scan CMOS
- 4000 × 3000 HD video
- Slow shutter
- DWDR
- 3D DNR
- Audio/Alarm IO
- Support 128G on-board storage
- DC12V/AC24V/PoE
