| Camera | ||
|---|---|---|
| Image sensor: | | | 1/1.8” Progressive Scan CMOS |
| Min. illumination: | | | 0.014 lux @ (ƒ/1.4,AGC on), 0 lux with IR |
| Shutter time: | | | 1 s to 1/100,000 s |
| Slow shutter: | | | Supported |
| Lens: | | | 2.8-12mm @ F1.4, 94.5°~30.5° |
| Auto iris: | | | DC drive |
| Day & night: | | | Electronic (IR cut filter with auto switch) |
| Digital noise reduction: | | | 3D DNR |
| Wide dynamic range: | | | Supported |
| Smart Focus: | | | Yes |
| Compression standard | ||
| Video compression: | | | H.264/MJPEG |
| H.264 codec profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32 Kbps – 16 Mbps |
| Audio compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | ||
| Max. resolution: | | | 3072 x 2048 |
| Frame rate: | | | 50Hz: 25fps (3072×2048,3072×1728,2560×2048,2560×1920,2048×1536,1920×1080,1280×720) 60Hz: 25fps (3072×2048),30fps(3072×1728,2560×2048,2560×1920,2048×1536, 1920×1080,1280×720) |
| 3rd stream: | | | Independent with main stream and sub stream, up to 50 Hz: 25 fps @ 1280 × 720;60 Hz: 30 fps @ 1280 × 720 |
| Image settings: | | | Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Supported |
| Defog: | | | Supported |
| ROI: | | | Supported |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm trigger: | | | Intrusion detection, Defocus detection, Motion detection, Face detection,Dynamic analysis,Tampering alarm, Network disconnect, IP address conflict,
Storage exception |
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Interface | ||
| Audio input: | | | 1 RJ-45 10M/100M Ethernet port |
| Audio output: | | | 1 Vp-p composite output (75 Ω/BNC) |
| On-board storage: | | | Built-in microSD/SDHC/SDXC slot, up 128 GB |
| Reset: | | | Yes |
| General | ||
| Operating conditions: | | | -40° C to 60° C (-40° F to 140° F), humidity 95% or less (non-condensing) |
| Power supply: | | | 12 VDC ±10%, PoE (802.3at) |
| Power consumption: | | | 12 W maximum |
| IR range: | | | Up to 50 m |
| Impact protection: | | | IP67 |
| Dimensions: | | | 100 mm × 103.9 mm × 311.8 mm |
| Weight: | | | 2000g |

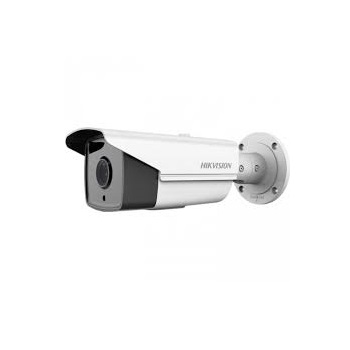

Camera Bullet 6MP Motorized lens with Smart Focus
- 1/1.8” progressive scan CMOS sensor
- 6MP high resolution
- Full smart feature-set
- Motorized lens with Smart Focus
- Up to 128GB on-board storage
- Up to 50m IR range
- IP67
