| Thermal | ||
|---|---|---|
| Image sensor: | | | Vanadium Oxide Uncooled Focal Plane Detectors |
| Response waveband: | | | 8~14μm |
| NETD: | | | < 50mk(@25°C,F#=1.0) |
| F number: | | | 1.0 |
| Compression Standard | ||
| Max.Resolution: | | | 1920×1080 (visible light), 384×288 (thermal) |
| Main Stream: | | | 50Hz:25fps(1920×1080), 25fps(1280×960), 25fps(1280×720) (visible light) 60Hz:30fps(1920×1080), 30fps(1280×960), 30fps(1280×720) (visible light) 50Hz:25fps(384×288) (thermal) |
| Sub Stream: | | | 50Hz:25fps(704×576), 25fps(352×288), 25fps(176×144) 60Hz:30fps(704×480), 30fps(352×240), 30fps(176×120) 50Hz:25fps(160×120) (thermal) |
| Video Compression: | | | H.264/MJPEG/MPEG4, H.264 encoding with Baseline/Main/High Profile |
| Audio Compression: | | | G.711u/G.711a/G.722.1/MP2L2/G726/PCM |
| Simultaneous live view: | | | Up to 20 |
| Interface | ||
| Alarm Input: | | | 1 inputs (0-5vDC) |
| Alarm Output: | | | 1 relay outputs,alarm response actions configurable |
| Audio Input: | | | 1 Mic in/Line in interface.Line input: 2-2.4V[p-p], output impedance:1KΩ±10% |
| Audio Output: | | | Line level, impedance: 600Ω |
| General | ||
| Power Supply: | | | AC24V, 40W max |
| Operating Conditions: | | | -40 ℃-55℃(-40℉-140℉), 90% or less |
| Protection Level: | | | IP66 |
| Weight: | | | 10.5 kg |

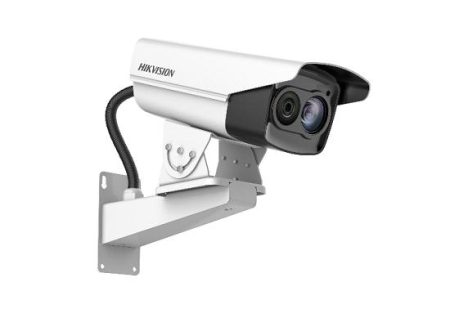

Camera Bullet Thermal + Optical Bispectrum
- Thermal: 384×288, Visible: 1920×1080
- Visible: DarkFighter Ultra low light
- Thermal: 25mm (21.7°)/ 50mm (11°) thermal lens optional
- Support line crossing and intrusion
- Support temperature exception alarm
- Support fire detection
- up to 120m IR
- IP66
