| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1s ~ 1/100,000s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8-12mm @ F1.4, 94.5°~30.5° |
| Auto Iris: | | | DC drive |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | -S: G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | -S:64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | ||
| Max. Image Resolution: | | | 3072 x 2048 |
| Frame Rate: | | | 50Hz: 24fps (3072 × 2048), 25fps (3072 × 1728, 2560 × 2048, 2560 × 1920,2048 × 1536, 1920 × 1080, 1280 x 720) 60Hz: 24fps (3072 × 2048), 30fps (3072 × 1728, 2560 × 2048, 2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 x 720 ) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps@4CIF |
| Image Enhancement: | | | BLC/3D DNR/ROI/Defog |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client softwareor web browser |
| Regional Cropping: | | | Support |
| Picture Overlay: | | | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict,storage exception |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface: | | | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface |
| Alarm: | | | -S:1 input, 1 output (up to DC24V 1A or AC110V 500mA ) |
| Video Output: | | | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| Audio | ||
| Environment Noise Filtering: | | | Support |
| Audio I/O: | | | Support dual audio track, stereo (-S) |
| Audio Sampling Rate: | | | 16kHz / 32kHz / 44.1kHz / 48kHz (-S) |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Region entrance, Region exiting,Unattended baggage, Object removal |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | | | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | | | Exit from a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerousmaterials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | | | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,Defocus detection |
| Recognition: | | | Face detection recognition |
| Statistics: | | | Object Counting (Entrance and Exit object number is accounted and showed on screen inreal time) |
| General | ||
| Operating Conditions: | | | -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing),-H: -40 °C – 60 °C |
| Power Supply: | | | 24 VAC ± 10% / PoE (802.3at) |
| Power Consumption: | | | 24W MAX |
| Impact Protection: | | | IK10 |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 50m |
| Dimensions: | | | 158×338×560 mm (6.22” ×13.31 ” × 22.05”) |
| Weight: | | | 6200 g (13.67 lbs) |

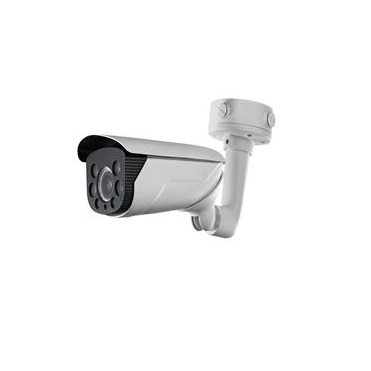

Camera Bullet Vandal-proof 6MP
- 1/1.8” progressive scan CMOS sensor
- 6MP high resolution
- Full smart feature-set
- Motorized lens with Smart Focus
- Up to 128GB on-board storage
- Up to 70m IR range
- IP66, IK10
