| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination: | | | 0.005 Lux @(F1.2,AGC ON), 0.007 Lux @(F1.4,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1 s to 1/100,000 s |
| Slow shutter: | | | Support |
| Lens: | | | 2.8-12mm @ F1.4 8-32mm @ F1.4 |
| Lens Mount: | | | AF automatic focusing and motorized zoom lens |
| Auto Iris: | | | DC drive |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | 120 dB |
| Compression Standard | ||
| Video Compression: | | | H.264+/H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | | | 32Kbps~16Mbps |
| Audio Compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Image | ||
| Max. Image Resolution: | | | 2048×1536 |
| Sub Stream: | | | 50Hz: 45fps(2048 × 1536), 50fps@(1920 × 1080, 1280 x 720) 60Hz: 45fps(2048 × 1536), 60fps@(1920 × 1080, 1280 x 720) |
| Third Stream: | | | Independent with Main Stream and Sub Stream, up to 50/60Hz: 10fps@1280 ×720 |
| Image Enhancement: | | | BLC/3D DNR/ROI/Defog |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Distortion Correction: | | | Support |
| Regional Cropping: | | | Support |
| Picture Overlay: | | | LOGO picture can be overlaid on video with 128×128 24bit bmp format |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | | | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| General Function: | | | User Authentication, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface: | | | 1 RJ45 10M/100M/1000M Ethernet port |
| Alarm: | | | 1 input, 1 output (up to DC24V 1A or AC110V 500mA ) (-S model) |
| Video Output: | | | 1Vp-p composite output (75 Ω/BNC) (-S model) |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | | | Yes |
| Audio | ||
| Environment Noise Filtering: | | | Support(-S) |
| Audio I/O: | | | Support dual audio track, stereo (-S) |
| Audio Sampling Rate: | | | 16kHz / 32kHz / 44.1kHz / 48kHz (-S) |
| Smart Feature-set | ||
| Behavior Analysis: | | | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage,Object removal |
| Line Crossing Detection: | | | Cross a pre-defined virtual line |
| Intrusion Detection: | | | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | | | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | | | Exit from a pre-defined virtual region |
| Unattended Baggage: | | | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | | | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | | | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection,Defocus detection |
| Recognition: | | | Face detection recognition |
| Statistics: | | | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
| General | ||
| Operating Conditions: | | | -30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing) -H: -40 °C – 60 °C (-40 °F – 140 °F) with smart heater on |
| Power Supply: | | | 12 V DC ± 10%, PoE (802.3at) |
| Power Consumption: | | | 12W MAX, -H:18W MAX |
| Weather Proof: | | | IP67 |
| IR Range: | | | Up to 50m (2.8-12mm) /100m (8-32mm) |
| Dimensions: | | | 100×103.9×311.8mm (3.94” × 4.09” × 12.28”) |
| Weight: | | | 2000g (4.41 lbs) |

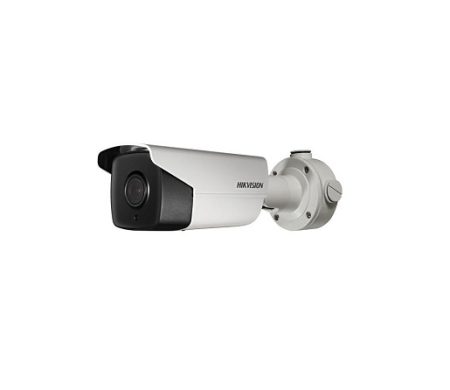

Camera IP 3MP thân trụ
- 1/2.8” Progressive Scan CMOS
- 3MP real time
- Up to 45fps frame rate
- Slow shutter
- 120dB WDR
- 3D DNR
- Built-in heater optional (-H)
- Audio/Alarm IO optional (-S)
- Support 128G on-board storage
- DC12V/PoE
- IP67 protection
