| Panoramic Camera | ||
|---|---|---|
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Max. Image Resolution: | | | 2MP |
| Min. Illumination: | | | Color:0.01 Lux @(F1.6,AGC ON); B/W:0.05Lux @(F1.6,AGC ON) |
| Lens: | | | 2.0mm/ F1.6 |
| Angle of View: | | | Horizontal: 130° |
| Audio Exception Detection: | | | Support |
| Main Stream: | | | 16:9 50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) , 60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) , |
| Image Compression: | | | H.265/H.264/MJPEG |
| Others: | | | 20m IR, 3D DNR, HLC |
| Tracking PTZ Camera | ||
| Image Sensor: | | | 1/2.8″ Progressive Scan CMOS |
| Max. Image Resolution: | | | 2MP |
| Min. Illumination: | | | Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR |
| Focal Length: | | | 2.8 to 12mm, 4× optical zoom |
| Min. Working Distance: | | | 10mm to 1500mm (Wide-Tele) |
| Main Stream: | | | 16:9 50Hz: 25fps (1920×1080,1280×960,1280×720, 704×576,640×480,352×288) , 60Hz: 25fps(1920×1080,1280×960,1280×720, 704×480,640×480,352×240) , |
| Image Compression: | | | H.265/H.264/MJPEG |
| Pan and Tilt (Tracking PTZ Camera) | ||
| Range: | | | Pan: 350°, Tilt: 0° to 90° |
| Speed: | | | Pan Manual Speed: 0.1°/s to 30°/s (Configurable), Pan Preset Speed: 30°/s Tilt Manual Speed: 0.1°/s to 30°/s (Configurable), Tilt Preset Speed: 30°/s |
| Number of Preset: | | | 300 |
| Patrol: | | | 8 patrols, up to 32 presets per patrol |
| Pattern: | | | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Park Action: | | | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan |
| Scheduled Task: | | | Preset/ Pattern Scan/ Patrol Scan/ Auto Scan/ Tilt Scan/ Random Scan/ Frame Scan/ Panorama Scan/Dome Reboot/ Dome Adjust/ Aux Output |
| Power-off memory: | | | Support |
| System Integration | ||
| Ethernet: | | | 1 RJ45 10 M/100 M Ethernet Interface/PoE+ |
| Onboard Storage: | | | Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128GB) |
| General | ||
| Power : | | | DC12V/PoE |
| Working Temperature/ Humidity: | | | Indoor: -10°C to 50°C/≤ 90% |
| Protection Level: | | | IP54 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions(mm): | | | 128.6 mm × Φ183 mm |

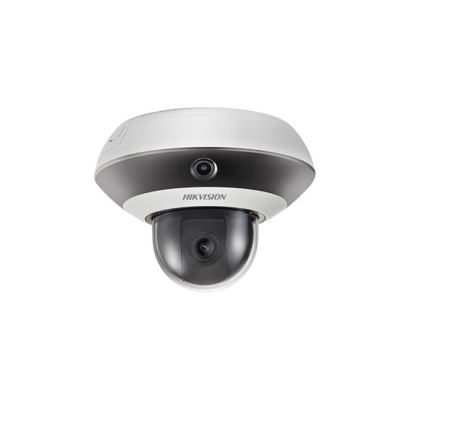

DS-2PT3122IZ-DE3 PanoVu series 130°panoramic + PTZ camera
Panoramic Camera
- 1/2.8″ progressive scan CMOS
- Up to 1920×1080 resolution @30fps
- Horizontal field of view: 130°
- Min. illumination: Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR
- IR distance: 20m
- 1/2.8″ progressive scan CMOS
- Up to 1920×1080 resolution @30fps
- Horizontal field of view: 119°, Horizontal field of view: 61°
- Min. illumination: Color: 0.01 Lux@(F1.6, AGC ON), B/W: 0.05 Lux@(F1.6, AGC ON), 0 Lux with IR
- 4× Optical Zoom, 16× Digital Zoom
